Nidhi Easy Flow 823 Multi Surgery Suction / Irrigation Pump

  1. Home
  2. Products
  3. Nidhi Easy Flow Pump 823

ISO 13485:2016 & CDSCO MD 5 MANUFACTURING LICENSE CERTIFIED COMPANY

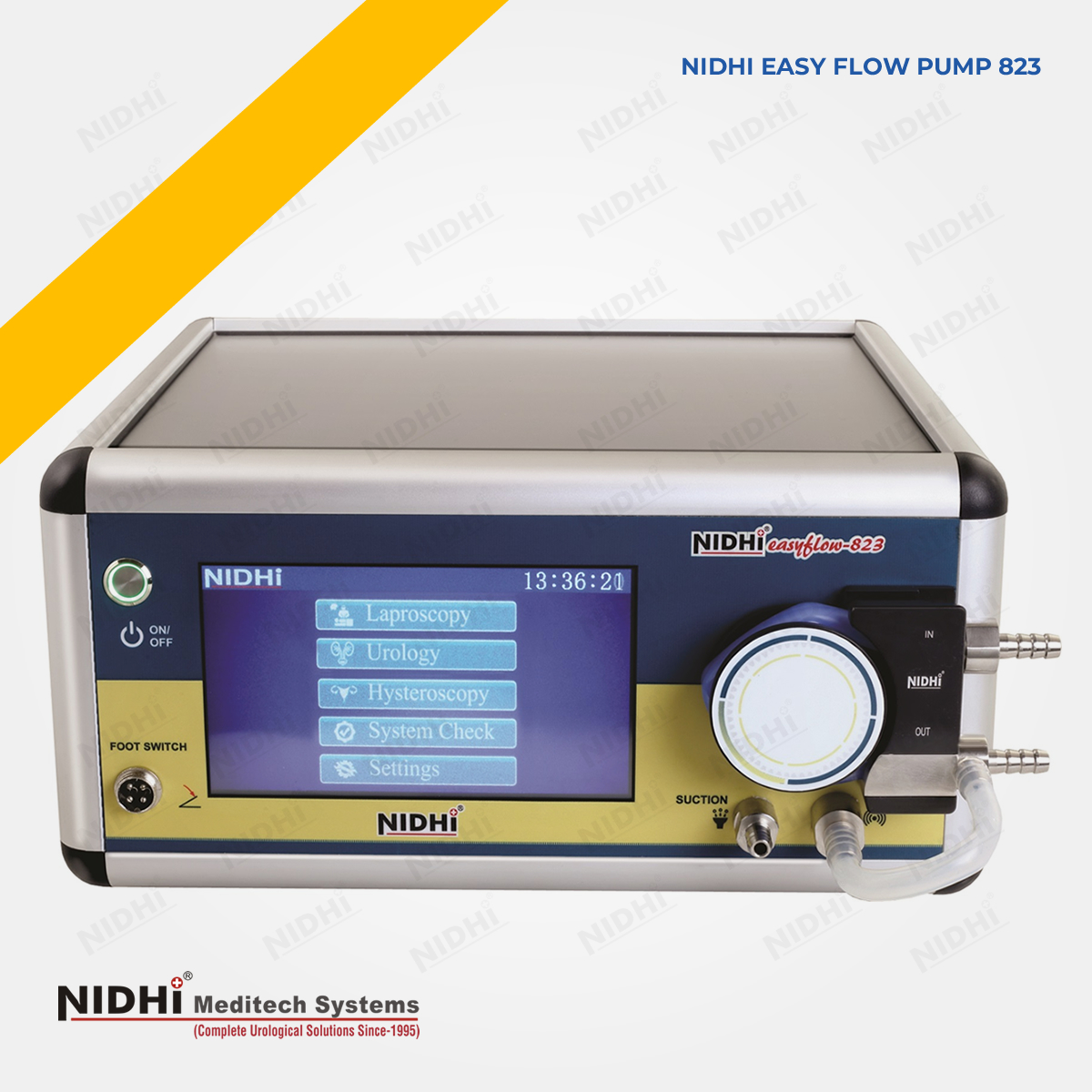

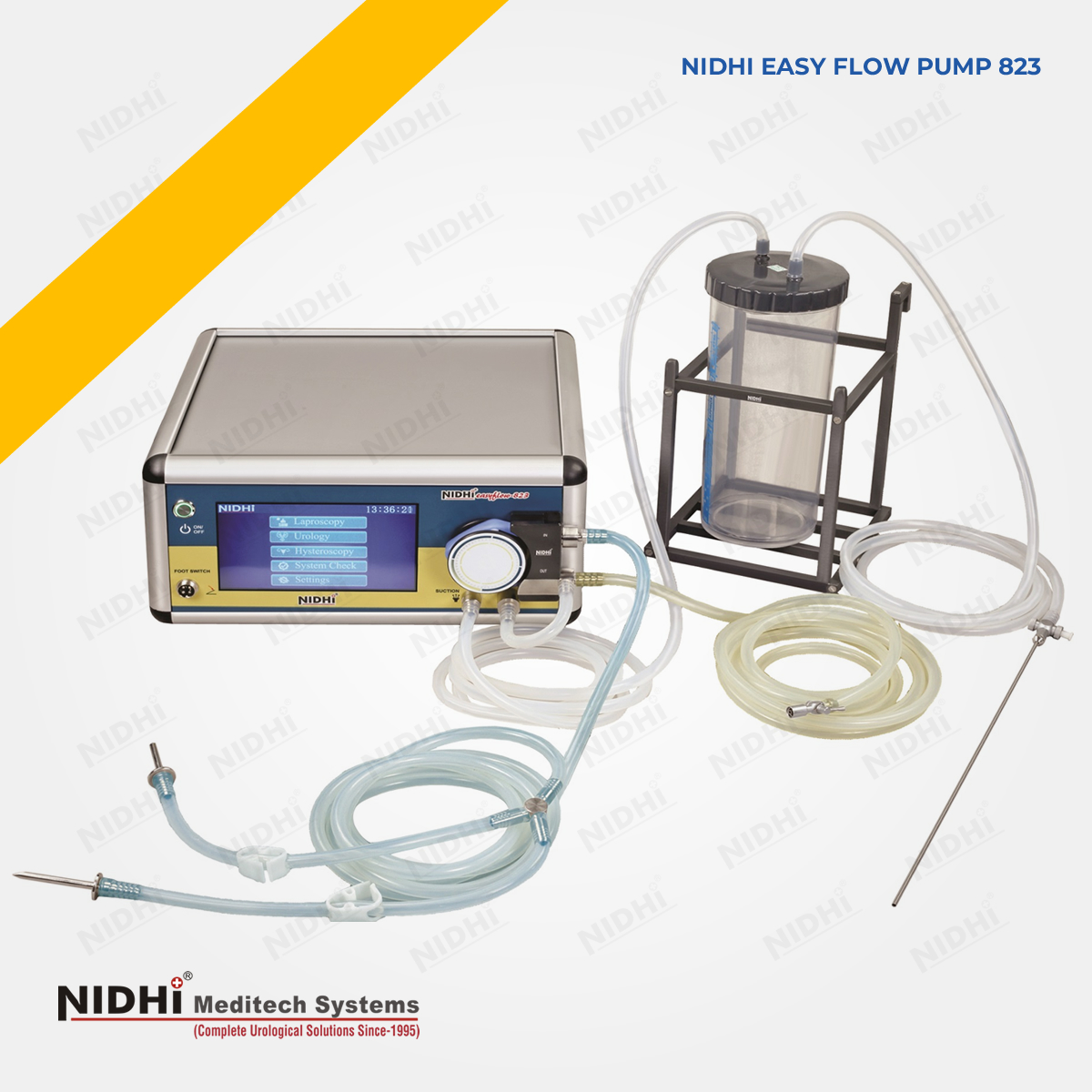

Nidhi Easy Flow 823 Multi Surgery Suction / Irrigation Pump

  • 1.Nidhi Easy Flow Pump 823 is an irrigation and suction pump from Nidhi Meditech Systems.
  • 2.Nidhi Easy Flow Pump 823 offers you a controlled and continuous irrigation flow for excellent flow vision and Suction during all types of Endourology , Gynecology and laparoscopy surgeries.
  • 3.Nidhi Easy Flow Pump 823 comes with the large display for better visualization & Control.

Performance Highlights :-

  • Nidhi Easy Flow 823 has 7 inch HMI Touch screen display.
  • Irrigation Flow Range :-
    • 0-2000ml/Min continuous flow
    • Incremental Range – 10ml/Min by Touch Screen
  • The Irrigation Flow will Start By touch screen & Foot switch.
  • Nidhi Easy Flow 823 Offers to set the flow and pressure as per the surgeon’s convenience also surgeon can adjust the flow and pressure as per their need during the running procedure.
  • Suction Range is 0-2000ml/Min and it will Start By Foot switch.
  • Nidhi Easy Flow 823 has an Over Pressure cut off alarm on display with buzzer sound.
  • For Mini PCNL It has an intermittent On/Off cycle of 3 sec / 2 sec .

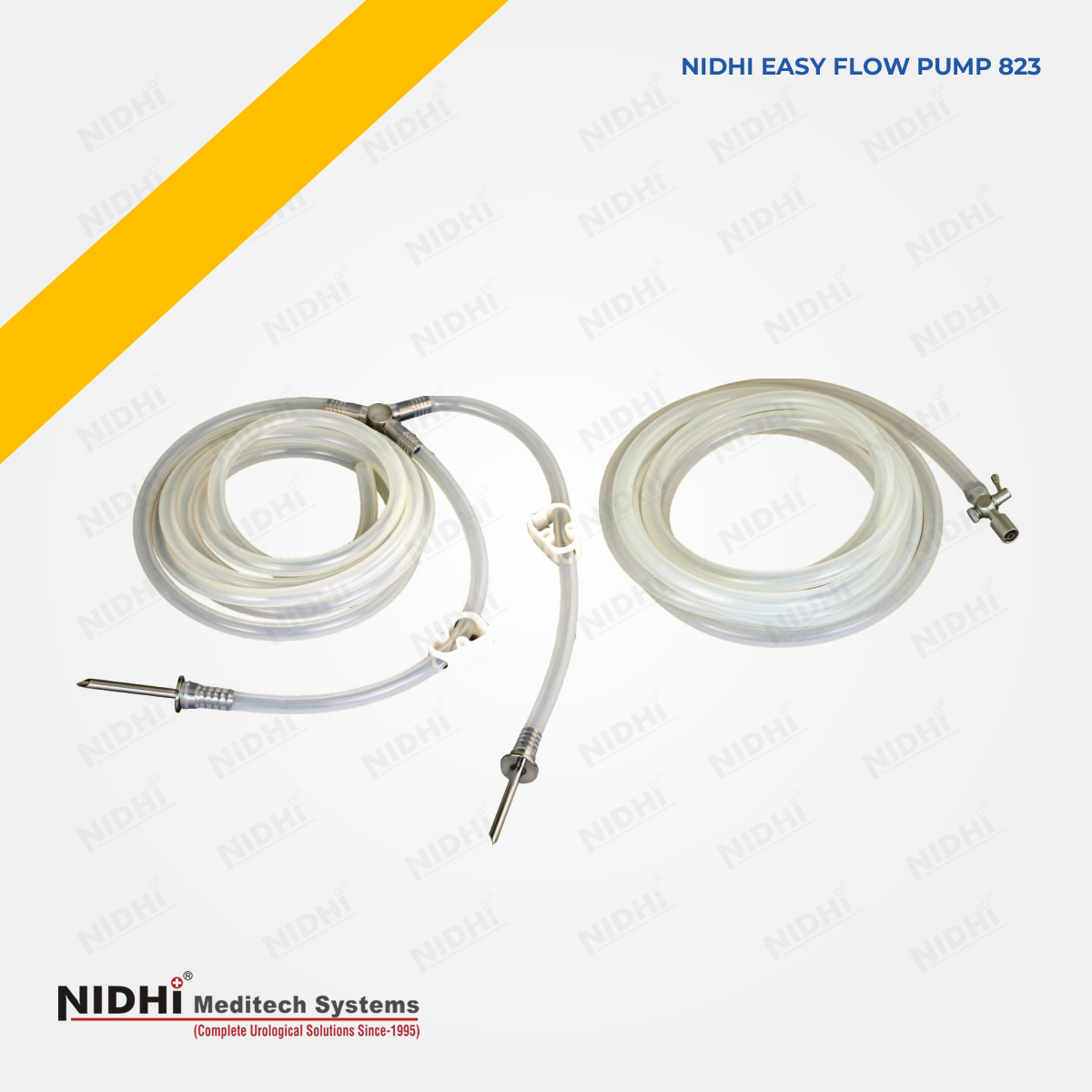

  • The S S Connectors and silicon tubing are autoclavable.

Features:-

  • It has an adjustable flow and pressure function.
  • Generally recommended range flow and pressure are as under
Inquire Now

Nidhi Easy Flow 823 Multi Surgery Suction / Irrigation Pump

  • 1.Nidhi Easy Flow Pump 823 is an irrigation and suction pump from Nidhi Meditech Systems.
  • 2.Nidhi Easy Flow Pump 823 offers you a controlled and continuous irrigation flow for excellent flow vision and Suction during all types of Endourology , Gynecology and laparoscopy surgeries.
  • 3.Nidhi Easy Flow Pump 823 comes with the large display for better visualization & Control.

Performance Highlights :-

  • Nidhi Easy Flow 823 has 7 inch HMI Touch screen display.
  • Irrigation Flow Range :-
    • 0-2000ml/Min continuous flow
    • Incremental Range – 10ml/Min by Touch Screen
  • The Irrigation Flow will Start By touch screen & Foot switch.
  • Nidhi Easy Flow 823 Offers to set the flow and pressure as per the surgeon’s convenience also surgeon can adjust the flow and pressure as per their need during the running procedure.
  • Suction Range is 0-2000ml/Min and it will Start By Foot switch.
  • Nidhi Easy Flow 823 has an Over Pressure cut off alarm on display with buzzer sound.
  • For Mini PCNL It has an intermittent On/Off cycle of 3 sec / 2 sec .
  • The S S Connectors and silicon tubing are autoclavable.

Features:-

  • It has an adjustable flow and pressure function.
  • Generally recommended range flow and pressure are as under
Features
  • Nidhi Easy Flow 823 Offers to set the flow and pressure as per the surgeon’s convenience also surgeon can adjust the flow and pressure as per their need during the running procedure

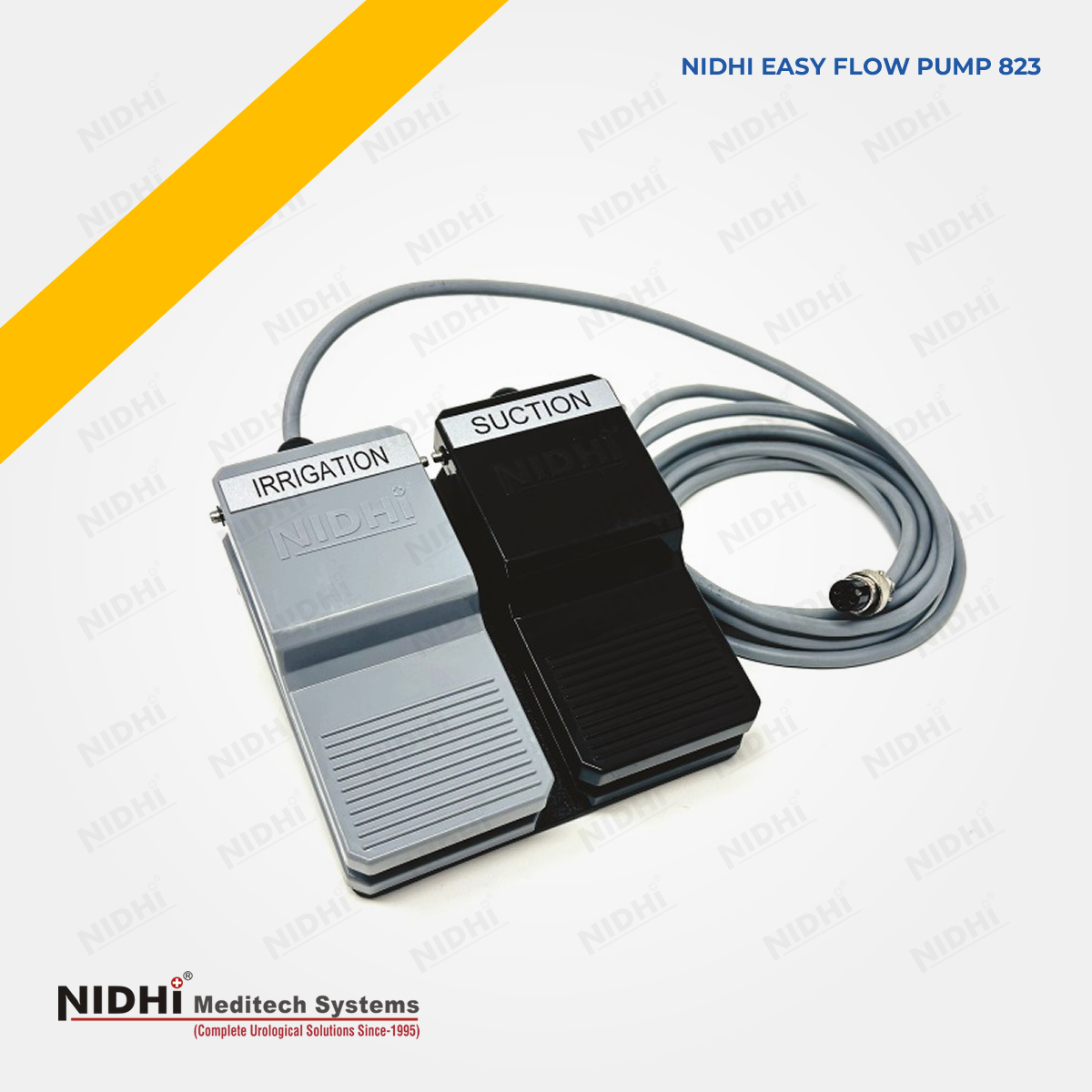

  • It has two types of irrigation options (1) continuous Irrigation by single Touch (2) Desired Irrigation Through Foot Switch
  • It has a large HMI touch screen display of 7 inch for easy operation and clear vision.
  • It has a powerful suction with 60 KPA pressure and max 2000ml / min. suction capacity.
  • It has a boost feature which help to remove any air bubble before attachment of irrigation tube connector with scope. The Capacity of boost function is 1000ml / Min.
  • It has a feature of over pressure alert through in display alarm & buzzer sound.
  • Safety Standards :- Nidhi Easy Flow 823 complies with IEC 60601-01-01 standard and guidelines of Class 1 / Class A Equipment as per CDSCO.
  • Certifications :- Nidhi Meditech Systems has successfully obtained the ISO 13485:2016 certification and CDSCO Manufacturing License for Nidhi Easy Flow 823.
Surgery Flow Range Pressure Range
End urology
URS up to 1000 ml/Min Up to 500 mmHg
PCNL up to 1500 ml/Min Up to 500 mmHg
MPCNL up to 1500 ml/Min Up to 500 mmHg
RIRS up to 300 ml/Min Up to 300 mmHg
TURP up to 1000 ml/Min Up to 500 mmHg
Hysteroscopy up to 1000 ml/Min Up to 400 mmHg
Laparoscopy up to 2000 ml/Min Up to 500 mmHg
  • Technical Specification
  • DOWNLOAD CATALOGUE

Technical Specification

Input Voltage100VAC 260 VAC
Supply Frequency50/60 Hz
Power Consumption100v/60Hz 1.10A 110 VA
240V/50hz 0.50A 118 VA
Operating Conditions+10 c to 40 с
Relative Humidity30%-95%
Altitude above sea level3000 mtr max
Storage transport & shipping conditions20 C TO +60 C
Dimensions350mm * 180mm * 340mm (W*H*D)
Weight7.2 Kg

DOWNLOAD CATALOGUE

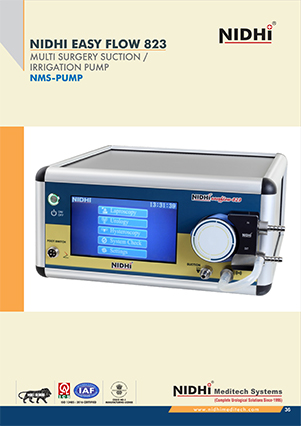

Nidhi Easy Flow 823 Multi Surgery Suction / Irrigation Pump CATALOGUE

006-NIDHI EASY FLOW 823
